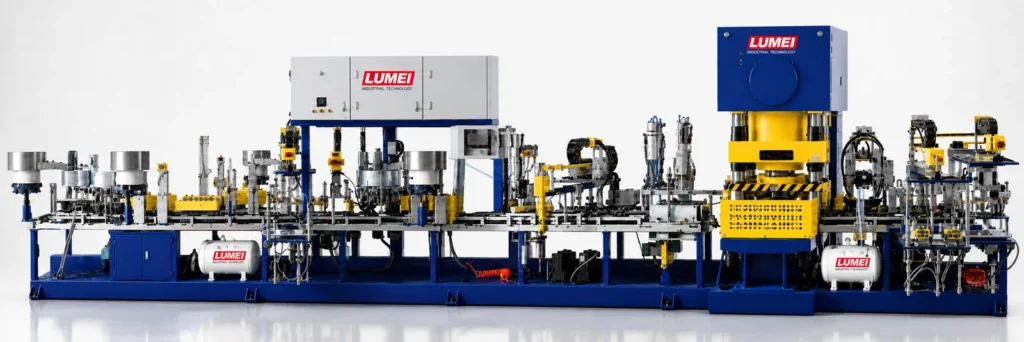

Double-pressure head full-automatic propulsion machine (76–96 stations)
Double-pressure flip-type design for 100–125 resin grinding wheels.
Equipment configuration and manufacturing support
76–96 workstations · 100–125 products · double-pressure flip-type configuration
Discuss this requirement
Equipment overview and specifications
Models, images and configurations are subject to the latest equipment specifications. Please confirm the details with your account manager.
| Item | Details |
|---|---|
| Equipment name | Double-pressure head full-automatic propulsion machine |
| Model and configuration | 76–96 workstations · 100–125 products · double-pressure flip-type configuration |
| Product range | 100–125 mm |
| Workstations | 76–96 |
| Reference output | 800–1,200 pcs/h |
| Output conditions | Qualified raw materials; total line output depends on supporting equipment and process conditions |
Main components and brands
Models, images and configurations are subject to the latest equipment specifications. Please confirm the details with your account manager.
| Component | Brochure brand or source | Function |
|---|---|---|
| Press | Foshan, Guangdong | Applies forming pressure |
| PLC | Xinjie / Mitsubishi / Siemens | Controls the operating sequence |
| Touch screen | Xinjie / Mitsubishi / Siemens | Displays operating status and settings |
| Contactor | Xinjie / Mitsubishi / Siemens | Switches electrical circuits |
| Inverter | Delta / Mitsubishi / Siemens | Adjusts motor speed |
| Servo motor | Xinjie / Mitsubishi / Siemens | Drives controlled motion |
| Relay | Omron | Switches control signals |
| Stepper motor | MiG | Provides stepwise positioning |
| Rotary table motor | Obon | Drives the rotary table |
| Cylinder / valve | Airtac / SMC / CKD | Provides pneumatic movement and air control |
| Electric cylinder | Newland / Hongsheng | Provides linear motion |
Information for machine selection
Provide disc diameter, thickness, bore, reinforcement structure, shifts and target output. For replacements, include installed machines and tooling. New projects require coordinated mixing, curing, testing and packing decisions.
Installation training and support
After project confirmation, review layout, installation readiness, operator training and support. Onsite charges, warranty scope and fault response follow the service terms.
