Resin Grinding Wheel Forming Press, 48–52 Stations
For 107–125 resin grinding wheels; capacity is subject to raw materials meeting the required standard.
Equipment configuration and manufacturing support
48–52 workstations · 107–125 products · vertical double-pressure configuration
Discuss this requirement
Equipment overview and specifications
Models, images and configurations are subject to the latest equipment specifications. Please confirm the details with your account manager.
| Item | Details |
|---|---|

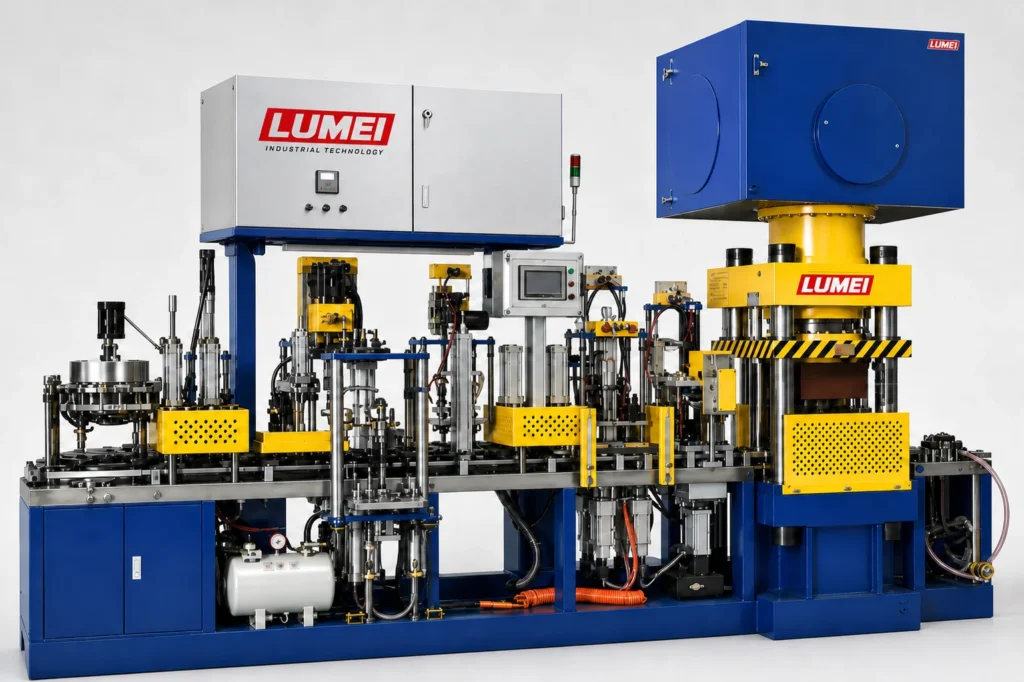

| Equipment name | Double-pressure head full-automatic propulsion machine |
| Model and configuration | 48–52 workstations · 107–125 products · vertical double-pressure configuration |
| Product range | 107–125 mm |
| Workstations | 48–52 |
| Reference output | 1,000–1,200 pcs/h |
| Output conditions | Qualified raw materials; total line output depends on supporting equipment and process conditions |
Main components and brands
Models, images and configurations are subject to the latest equipment specifications. Please confirm the details with your account manager.
| Component | Brochure brand or source | Function |
|---|---|---|
| Press | Foshan, Guangdong | Applies forming pressure |
| PLC | Xinjie / Mitsubishi / Siemens | Controls the operating sequence |
| Touch screen | Xinjie / Mitsubishi / Siemens | Displays operating status and settings |
| Contactor | Xinjie / Mitsubishi / Siemens | Switches electrical circuits |
| Inverter | Delta / Mitsubishi / Siemens | Adjusts motor speed |
| Servo motor | Xinjie / Mitsubishi / Siemens | Drives controlled motion |
| Relay | Omron | Switches control signals |
| Stepper motor | MiG | Provides stepwise positioning |
| Rotary table motor | Obon | Drives the rotary table |
| Cylinder / valve | Airtac / SMC / CKD | Provides pneumatic movement and air control |
| Electric cylinder | Newland / Hongsheng | Provides linear motion |
Information for machine selection
Provide disc diameter, thickness, bore, reinforcement structure, shifts and target output. For replacements, include installed machines and tooling. New projects require coordinated mixing, curing, testing and packing decisions.
Installation training and support
After project confirmation, review layout, installation readiness, operator training and support. Onsite charges, warranty scope and fault response follow the service terms.
Check the product against this forming configuration
Use the published product range and configuration as the starting point. Confirm thickness, bore and reinforcement structure against drawings or samples. Agree the working sequence, tooling and product suitability in the proposed specification before ordering.
Automatic operations, tooling and acceptance
| Review item | Information to provide or confirm |
|---|---|
| Product construction | Outside diameter, thickness, bore, reinforcement layers and intended product specification. |
| Operating sequence | Confirm feeding, reinforcement placement, pressing, demoulding and unloading. Identify automatic operations, manual tasks and optional items in the proposed configuration. |
| Tooling and changeovers | Identify included molds, product variants, changeover requirements and trial arrangements for each proposed product. |
| Output and acceptance | Reference output assumes qualified raw materials. Total line output depends on supporting equipment and process conditions. Agree trial materials, product mix, shifts, output recording and product acceptance criteria. |
